Best Hastelloy C276 roundbars Suppliers in india,saudiarabia
We buy Hastelloy C276 round bars from Worldknown Manufacturers.
All Hastelloy c276 round bars supply with full Mill test Certificate.
Hastelloy C276 | N10276 | 2.4819 | NW 0276 | Nicrofer 5621 | Ni57Mo17Cr16FeWMn

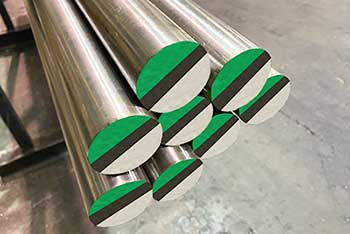

About Hastelloy C276 round bars
We are leading suppliers of Hastelloy C276 round bars in India and Saudi Arabia for over 15 years. We offer a wide range of Hastelloy round bars, ensuring top-notch quality and reliability. Each product is accompanied by a full mill test certificate, guaranteeing compliance with international standards. Hastelloy C276 round bars has excellent resistance to pitting and stress corrosion cracking.We provide Hastelloy Alloy C276 Round Bar as per the requirements of our customers and deliver quality products on time.Our customers can avail of the superior quality Hastelloy C276 round bars at very reasonable and competetive rates.
Hastelloy C276 round bars has the ability ro resist corrosion in ahost of media which includes strong oxidizers such as ferric and cupric chlorides, hot contaminated media which could be either organic or inorganic,chlorine,acetic anhydride,formic acid and acetic acid,along with good resistance to seawater as well as brine solutions. Inline with as we largest stockiest of hastelloy C276 We also supply hastelloy C276 sheets, plates, coils, wires, weldingrods, fastners, fittings, flanges as per customer requirements.
hastelloy C276 roundbarsis a nickel-chromium-molybdenum alloy that is resistant to corrosion. Alloy C276 is suitable for many chemical process applications. Hastelloy C-276 has superior resistance to localized corrosion as well as oxidizing. Provide all grade of these Hastelloy C276 round bars by different shape & size is Our expertise.
These Hastelloy N10276 Round Bars are manufactured by using the superior quality of raw substances under the strict guidance of professional experts. Also, we are making effective use of the latest technology and modern tools so that better quality of production of bars can take place. The designing and fabrication of bars are done according to set manufacturing norms and product quality standards. Also at our manufacturing plant, we have hired skilled quality controllers that at all levels of production stages are looking at the product quality control.
Advantage of Hastelloy C276 round bars.
This Hastelloy C276 Round Bars advantage is that they generally do not require solution heat treatment after welding. These Hastelloy C276 Bars resist the formation of grain boundary precipitation leading to the degradation of corrosion resistance. These are used for many applications, like in the desulfurization of flue gas equipment and chemical process equipment. It also has excellent machinability, good fabricability and impressive corrosion resistance in severe conditions.
Characteristics of Hastelloy C276 round bars.
- High resistance to uniform attack
- Outstanding localized corrosion resistance
- Excellent stress corrosion cracking resistance
- Good resistance to acids such as sulfuric, nitric, hydrochloric, hydrofluoric and chromic
- Ease of welding and fabrication
- High resistance to oxidation at elevated temperatures
Applications of Hastelloy C276 round bars.
- Chemical Processing Industries
- Aerospace Industries
- Pharmaceutical & Machine Industries
- Oil and gas production Industries
- Components where There exposure to high mechanical stress and sea water are required
- Where Components exposed to flue gas or flue gas desulfurization plants & Mechanism.
Hastelloy C276 round bars Test Certificates.
We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
- EN 10204/3.1B,
- Raw Materials Certificate
- 100% Radiography Test Report
- Third Party Inspection Report, etc
Hastelloy C276 round barsTesting.
We at are ensure that all our materials go through strict quality tests before dispatching them to our clients.
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
Documentation on Hastelloy C276 round bars supply.
- Commercial Invoice which includes HS Code
- Packing List including net weight and gross weight, number of boxes, Marks and Numbers
- Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
- Fumigation Certificates
- Raw Material Test Reports
- Material Traceability Records
- Quality Assurance Plan (QAP)
- Heat Treatment Charts
- Test Certificates certifying NACE MR0103, NACE MR0175
- Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
- Guarantee Letter
- NABL approved Laboratory Test Reports
- Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
- Form A for the purposes of the Generalized System of Preferences (GSP)
Hastelloy Alloy C276 Round Bar Specification
| Standard | ASTM B574, ASME SB574 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
Hastelloy Alloy C276 Round Bar Condition.
| H&T | Hardened and tempered. |
| ANN | Annealed |
| PH | Precipitation hardened. |
Hastelloy C276 round bars Chemical Composition (%).
| (Ni) Nickel | Remainder |
| (Mo) Molybdenum | 15.0 to 17.0 |
| (Cr) Chromium | 14.5 to 16.5 |
| (Fe) Iron | 4.0 to 7.0 |
| (W) Tungsten | 3.0 to 4.5 |
| (Co) Cobalt | 2.5 max |
| (Mn) Manganese | 1.0 max |
| (V) Vanadium | 0.35 max |
| (Si) Silicon | 0.08 max |
| (P) Phosphorus | 0.04 max |
| (S) Sulfur | 0.03 max |
| (C) Carbon | 0.010 max |
Hastelloy C276 round bars Mechanical Properties.
|
Product Form |
Tensile (ksi) |
.2% Yield (ksi) |
Elongation % |
|---|---|---|---|
|
Bar |
110.0 |
52.6 |
62 |
|
Plate |
107.4 |
50.3 |
67 |
|
Sheet |
115.5 |
54.6 |
60 |
|
Tube & Pipe |
105.4 |
45.4 |
70 |
Hastelloy C276 Rund bars Sizes.
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Hastelloy C276 round bars Inventory in diffrent shape
| 10mm Hastelloy C276 Round Bar | United Arab Emirates (UAE), Norway, Malaysia, Turkey |
| Hastelloy C276 Rod | Dammam -KSA, Indonesia, Belgium, Philippines. |
| 6mm Hastelloy Round Bar | Canada, Singapore, Malaysia, Philippines |
| Hastelloy Rod | Japan, Europe, Romania, Malaysia |
| Astm B574 Uns N10276 Alloy Hastelloy Sqaure Bar | Colombia, Malaysia, Sweden, China |
| B574 N10276 Hastelloy Hex Bar | Dubai, Netherlands, Russia, Malaysia |
| 12mm C276 Round Bar | South Africa, Saudi Arabia (KSA), Kuwait, Brazil |
| Hastelloy C22 Round Bar | Philippines, Nigeria, Australia, UK |
| Nickel Alloy Rod C22 C276 Hastelloy Round Bar | Oman, Malaysia, Hong Kong, UAE |
| 10mm 12mm 16mm Hastelloy C 276 Bright Bar | South Africa, Bahrain, Singapore |
| N10276/c276 Nickel Alloy Rod/bar | France, Thailand, Europe, Qatar |
| Hastelloy Alloy C276 Round Bar | Germany, Czechia, Malaysia, Thailand |
| 4mm Asme Sb574 Uns N10276 Round Bar | Finland, Malaysia, USA, Bangladesh |
| Nickel Alloy Round Hastelloy C276 Material Bar | Italy, Iran, Chile, Singapore |
| Hastelloy C276 C22 Steel Angle Flat Bar And Round Bar | Egypt, Spain, UK, Mexico |
| Hastelloy C276 En 2.4819 Uns N10276 Round Bar | Ellington -United States, Poland, Canada, UK |
| 2mm Hastelloy C22 Alloy Round Bar | United Kingdom -UK, Europe, UAE, Malaysia |
Hastelloy C276 Rund bars Export country
- MIDDLE EAST : Saudi Arabia, Iran, Iraq, Qatar, Bahrain, Oman, Kuwait, Turkey, Yemen, Syria, Jordan, Cyprus
- ASIA : Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia
- EUROPE : Russia, Norway, Germany, France, Italy, UK, Spain, Ukraine, Netherlands, Belgium, Greece, Czech Republic, Portugal, Hungary Albania, Austria, Switzerland, Slovakia Finland, Ireland Croatia, Slovenia, Malta
- AFRICA : Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, the Republic Of Congo, Gabon
- SOUTH AMERICA : Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay
- NORTH AMERICA : US, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas
Other relevant.
We have a vast and robust supply network capable of supporting large-scale projects across various industries. Our ability to deliver a wide range of products, including all types of Hastelloy, round bars, wires, and welding rods, makes us a trusted partner in the market. Currently, we export our products to major countries worldwide, ensuring high-quality solutions for industries around the globe.
Disclaimer
Every effort is made to ensure that technical specifications are accurate. However, technical specifications included herein should be used as a guideline only. All specifications are subject to change without notice.
Hastelloy Common Trade Names
INCONEL alloy C-276, Hastelloy C-276 alloy
INCONEL is a registered trademark of the Special Metals Corporation group of companies. HASTELLOY is a registered trademark of Haynes International Inc.
